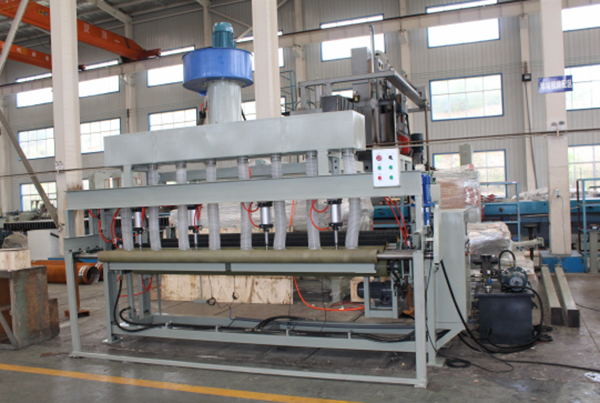

Recently, our research and production of BFB1527 type plate sub plate machine delivery users. The machine is an auxiliary machine for producing plywood veneer. It is mainly used to transport the single board after shearing and stacking into the dryer for drying. In recent years, the production of plywood factory to improve production efficiency, improve the veneer speed, saving labor costs and confused by artificial board before has not now need plywood production, the successful development of the machine, to solve the problem. Through the mechanical, hydraulic, pneumatic and electrical program control, the machine realizes the automatic board entry and plate separation of the veneer, improves the production efficiency and saves the production cost.

Main specifications and technical parameters:

Inlet plate specification: 2600 x 1350mm

Veneer thickness: 1.2-3mm

Motor power: 0.75kw

Plate speed: 60m/min

Power of plate motor 1.5kw

Board speed: 83m/min

Fan motor power: 3kw
