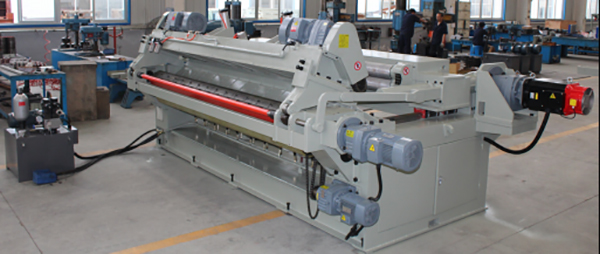

Recently, Shandong baishengyuan Group Co., the company successfully developed BXQ (J) 1827/5 new generation CNC spindleless rotary shear machine, the production efficiency of the machine is similar products higher, more excellent performance, the board quality is more stable, more convenient to use, is the upgrading of wood production plant equipment preferred.

The machine tool is the main machine for veneer production. It is mainly used for rotary cutting of Eucalyptus wood, poplar wood and single card rotary cutting wood core, and its maximum rotary cutting diameter is 500mm. Rotary cutting log log requirements by single card or peeling machine peeling, veneer veneer according to electrical setting, single plate shearing width is greater than 670mm, the hydraulic pressure knife, and through the single board conveyor to match the single board transfer out. The machine tool is an integrated machine tool which integrates rotary cutting, cutting and conveying. It improves the production efficiency and saves the production cost.

Main specifications and technical parameters:

Maximum rotary cutting length: 2600mm

Maximum cutting diameter: 500mm

Final diameter of wood core: 40mm

Thickness of rotary veneer: 0.5-3mm

The shortest shear length is 670mm

Output speed: 50m/min

Transmission roller motor power: 30KW

Feed motor power: 11kw

Anvil roller motor power: 1.5kw

Shear motor power: 2.2kw

Pump motor power: 1.5kw

Total power of machine tool: 46.2k

Size: 5250 x 2275 x 1728mm

Weight: 11000kg
